3M D156 pallet System 3R 3R-681.51 Pallet Compatible Ø156 mm 3Refix MacroMagnum

3M D156 pallet System 3R 3R-681.51 Pallet Compatible Ø156 mm 3Refix MacroMagnum

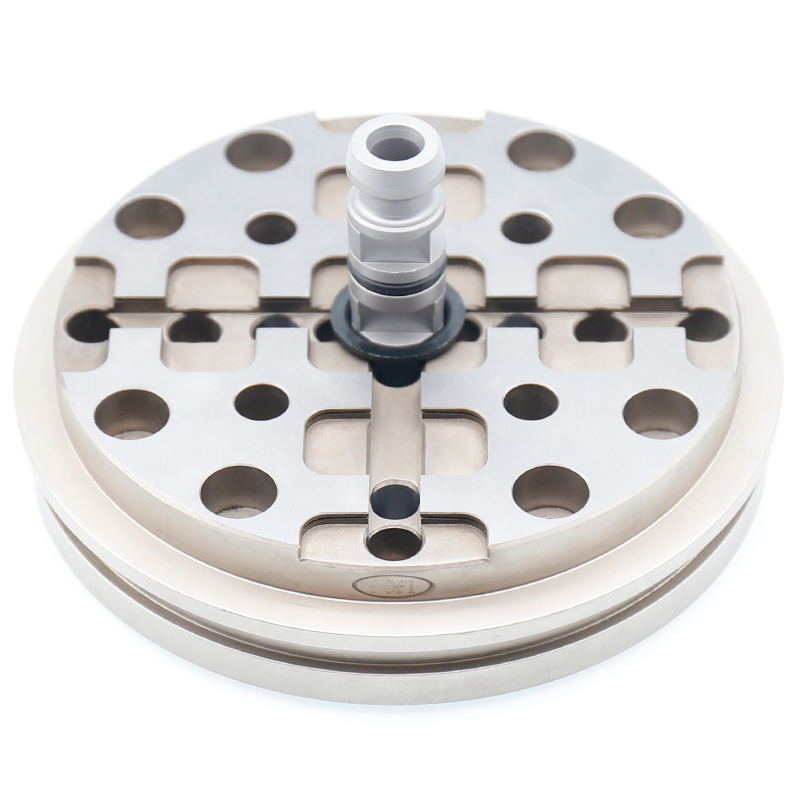

3M D156 pallet is compatible with System 3R 3R-681.51 Pallet Ø156 mm 3Refix MacroMagnum moldes. The marco pallet with threads and clearance holes for eight or ten fixing screws, 3Refix Φ10mm, rust resistant. It is adapted for automatic changing and it comes with flushing connection.


Availability:



Inquire

Model:
PO-3M0049

Product Description

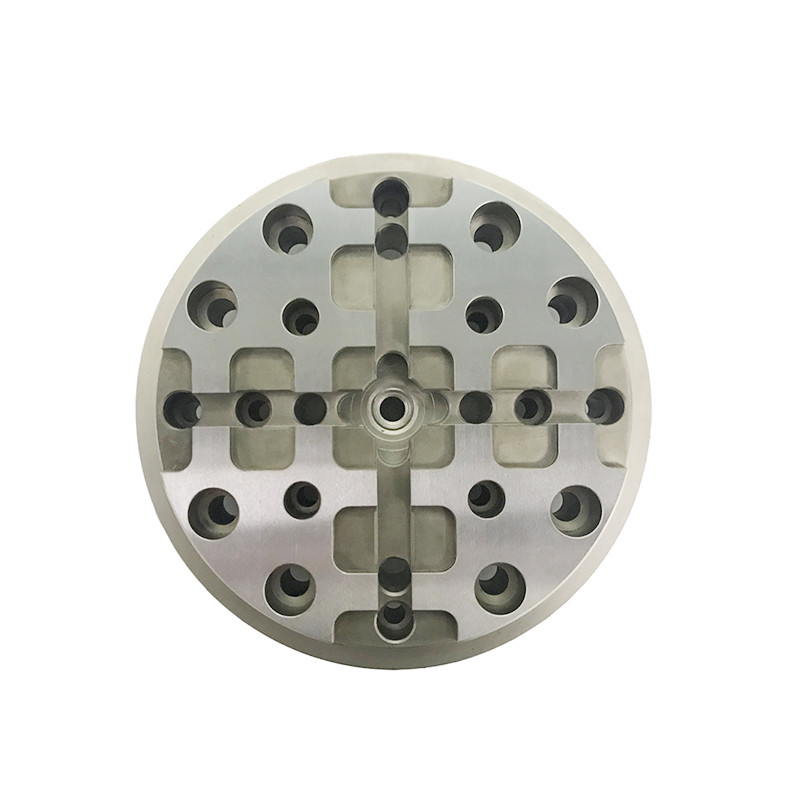

3R-681.51-Pallet 156-4

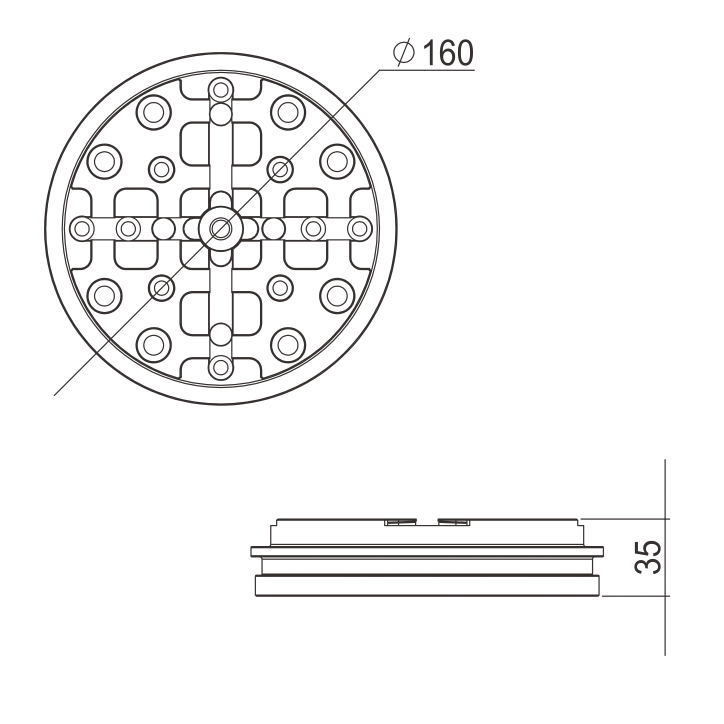

3R-681.51-Pallet 156-specification

Product Name: 3M D156 pallet System 3R 3R-681.51 Pallet Compatible Ø156 mm 3Refix MacroMagnum

Item No.: PO-3M0049

Description: 3M D156 pallet is compatible with System 3R 3R-681.51 Pallet Ø156 mm 3Refix MacroMagnum moldes. The marco pallet with threads and clearance holes for eight or ten fixing screws, 3Refix Φ10mm, rust resistant. It is adapted for automatic changing and it comes with flushing connection.

3M D156 pallet System 3R 3R-681.51 Pallet Compatible Ø156 mm 3Refix MacroMagnum System 3R MacroStd
