PO-3M0050
POFI
PO-3M0050

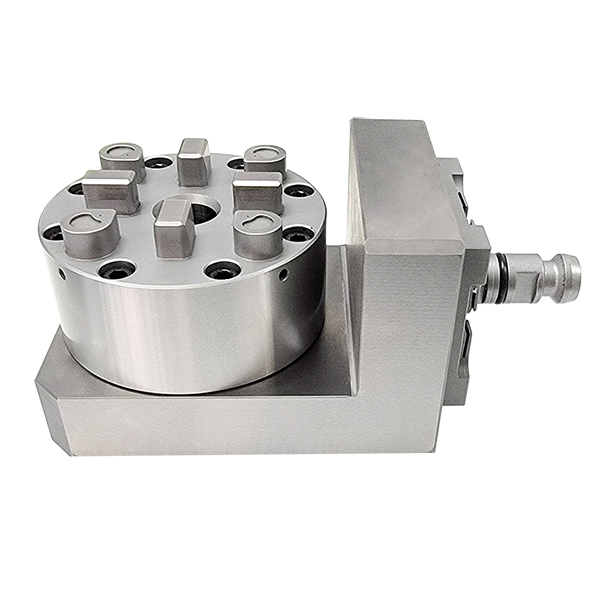

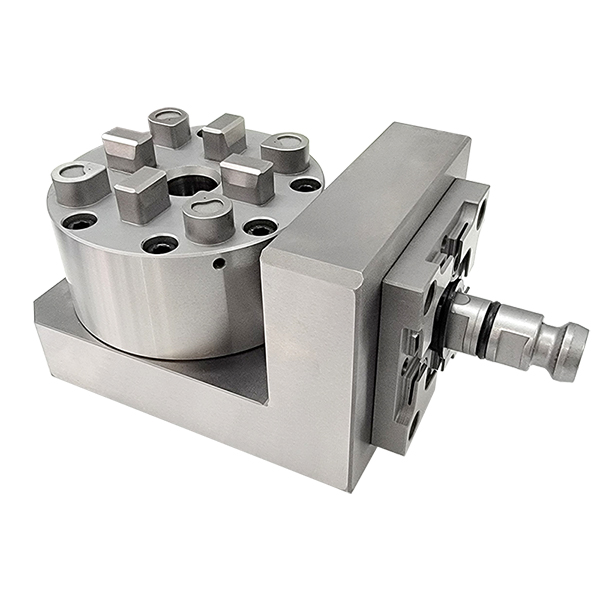

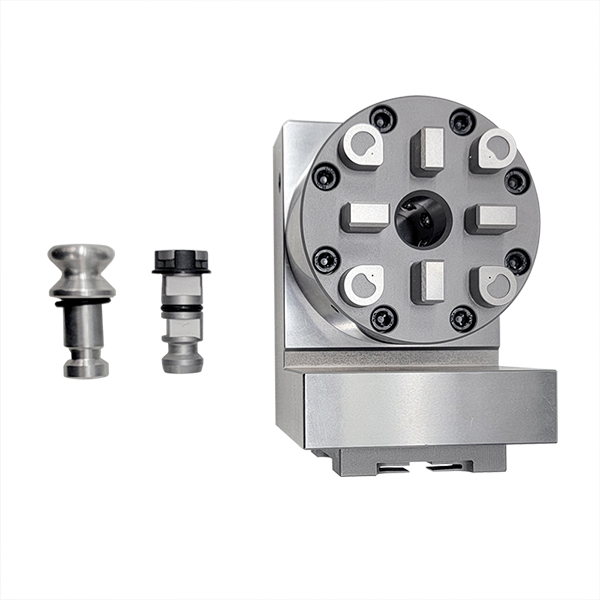

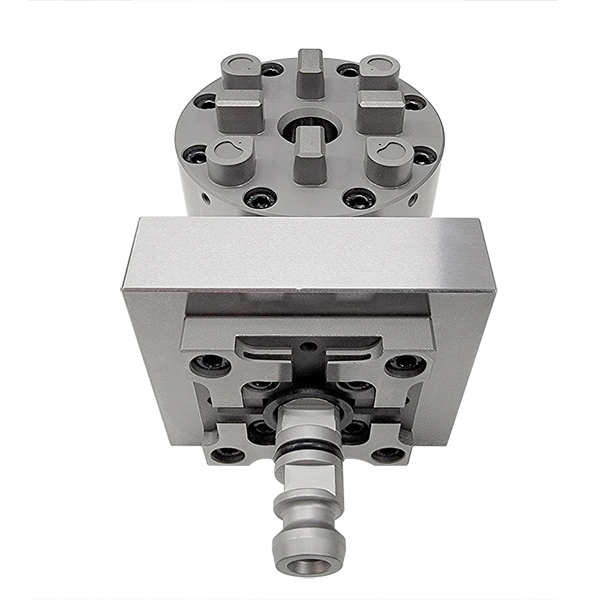

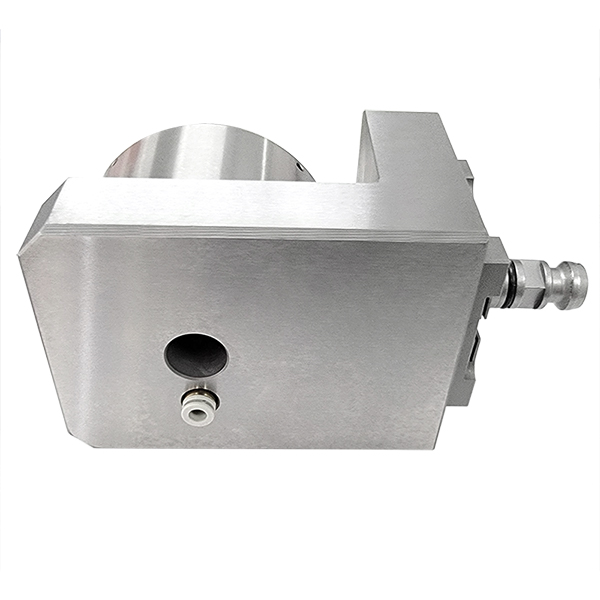

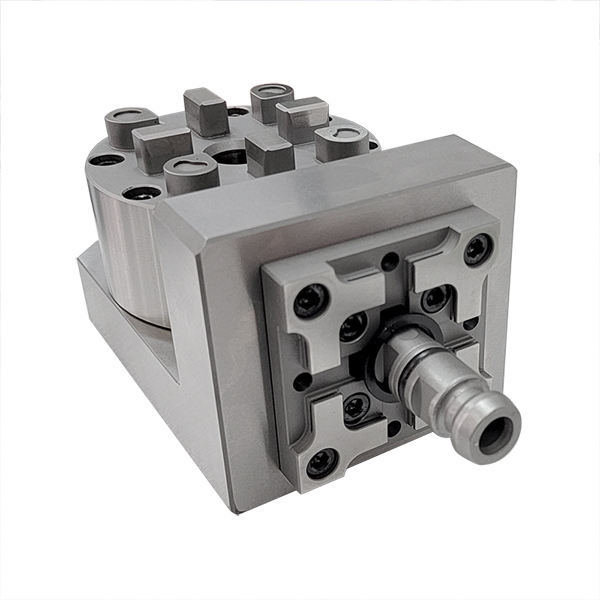

POFI 3M Pneumatic Chuck D100 with Turned Extension Arm Compatible 3R-600.EX8
Item No.: PO-3M0050

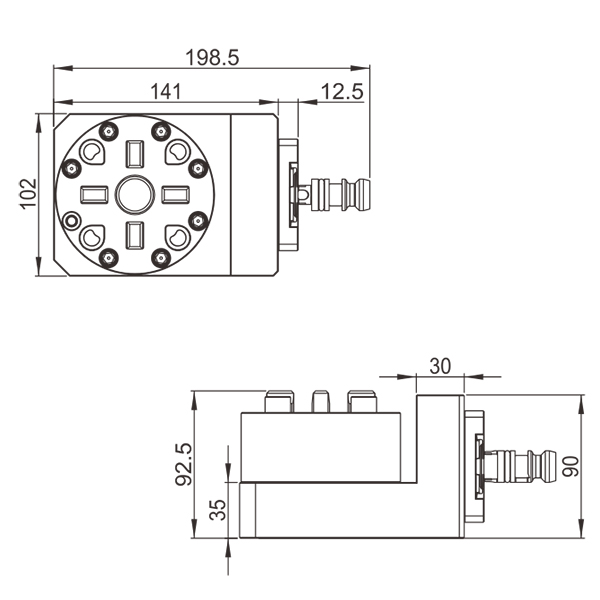

Product Size: 198.5x102x92.5mm
Description:POFI 3M Pneumatic Chuck D100 with turned extension arm is compatible System 3R. It is an euqivalent of 3R-600.EX8 Pneumatic Chuck mounting on a turned extionsion arm . It applies to accommodate electrode holders vertically for spark errossion process. The entire chuck is made of stainless steel, hardened, rust-resistant. Drawbar 3R-605.1 is required as well as 6±1 bar actuation air pressure . Air-blast cleaning of the Z-references.
