Square Holder 54x54 mm 3R-658.4E-S

Square electrode holder 54x54 mm is compatible with System 3R and it is equivalent to 3R-658.4E-S moldes.Square pocket electrode holder comes compelete ready to go. With chip hole, Includes 4 Stainless set screws and System 3R Centering Plate PO-3M0001 (3R-651.7E-XS). Square Hollow part size range has S15, S20, S25, S30. There are 3 material you can choose, Stainless Steel, Brass and Aluminum.


Material:	Stainless Steel Brass Aluminum
Availability:



Inquire

Product Description

3R Compatible S30 Brass Electrode Holder

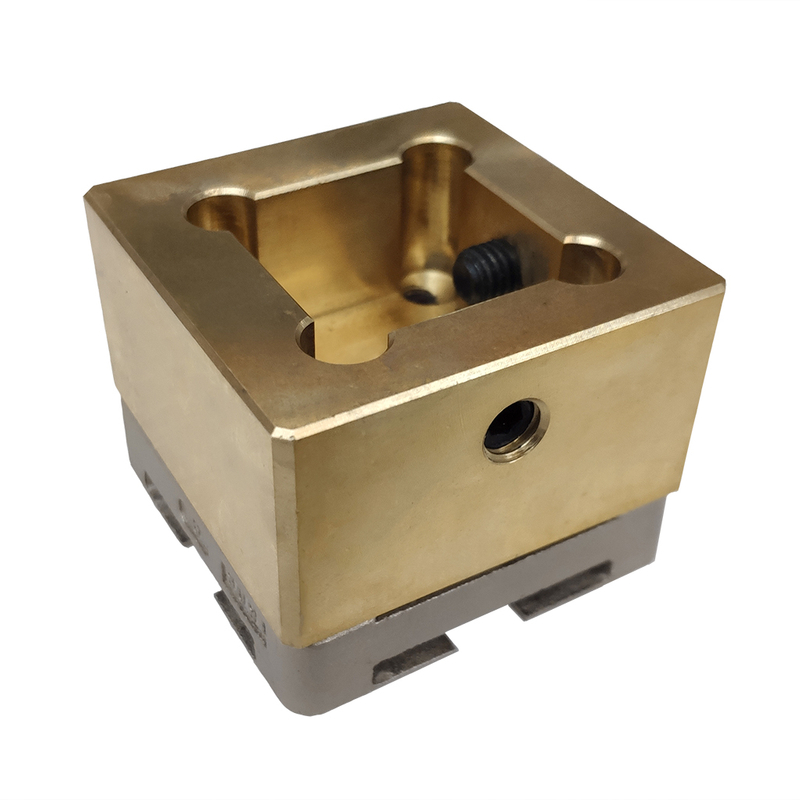

S30 square brass holder 54x54 3R-658.4E-S-1-500

3R Compatible S30 Stainless Steel Electrode Holder

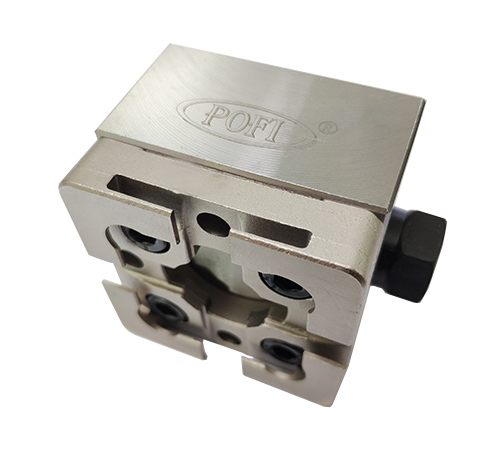

Holder 54x54--S20 square Stainless Steel holder with chip-3

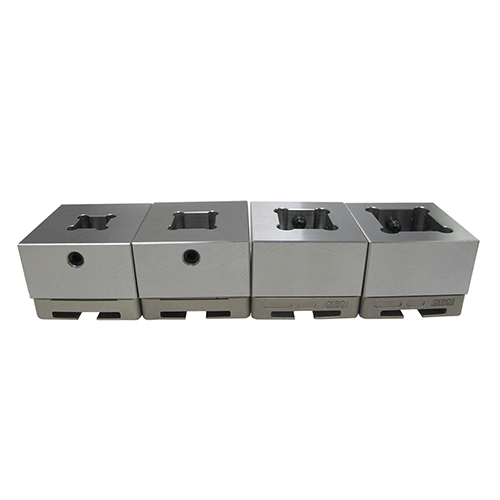

Holder 54x54-S15 Stainless Steel Square Electrode Holder-500

Product Name: Square Holder 54x54 mm 3R-658.4E-S

Item No.: PO-3M658.4E-S

Description: Square Holder 54x54 mm is compatible with System 3R and it is equivalent to 3R-658.4E-S moldes.Square pocket electrode holder comes compelete ready to go. With chip hole, Includes 4 Stainless set screws and System 3R Centering Plate PO-3M0001 (3R-651.7E-XS). Square Hollow part size range has S15, S20, S25, S30. There are 3 material you can choose, Stainless Steel, Brass and Aluminum.
