PO-MN100
POFI
NSR Robot Module for Robot Handling

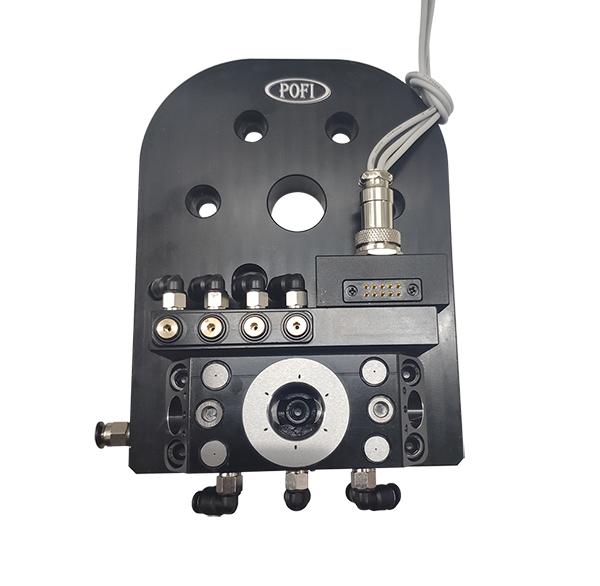

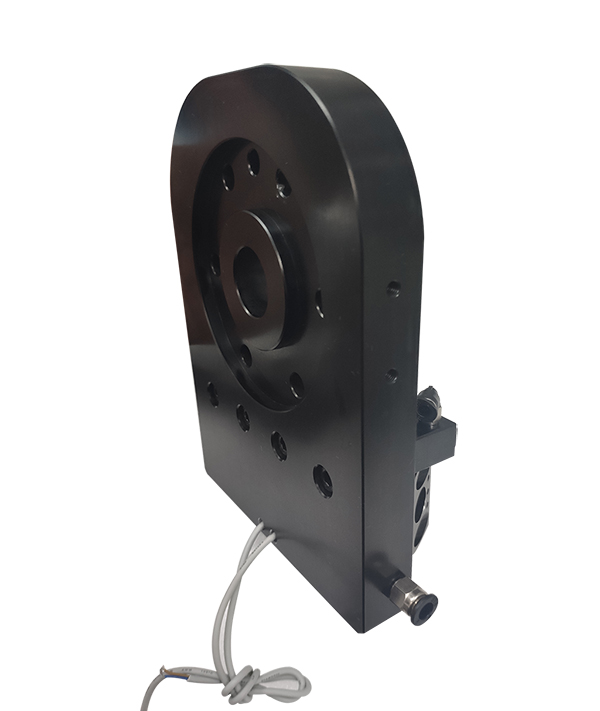

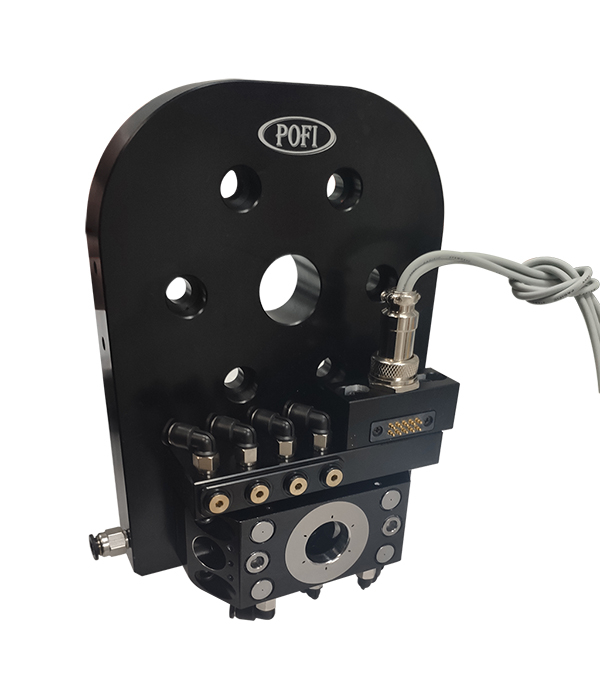

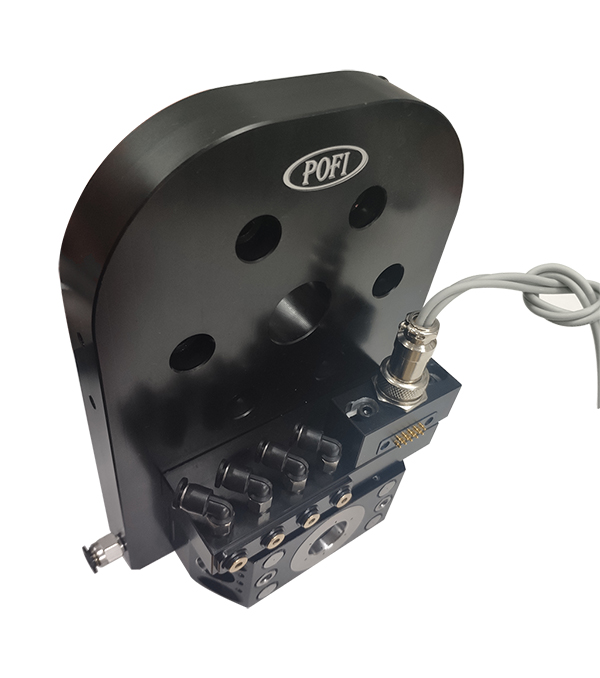

Product Name: NSR Robot Module for Robot Handling
Item No.: PO-MN100
Introduction:
NSR Robot Module is an ideal robot coupling for pallet handling extremely close to the machine table.
Robot module comes with a flange which is able to be customized according to your robot arm so that both them fit perfectly.
NSR Robot Module can be operated with 6 bar pressure.
Short taper positioning effectively guarantees joint process easy go at a repeat accuracy of < 0.01 mm.
Dual stroke system for highest pull-down forces leads to reliable self-retained locking even if air pressure drop. Pull down force 5KN generally.
Pull-down force is able to increase up to 8KN with turbo air pressure.
Integrated electronic magnetic switch by default. Inductive monitoring of module opened or closed and of pallet presence.
NSR Robot Module for Robot Handling
Product Name: NSR Robot Module for Robot Handling
Item No.: PO-MN100
Introduction:
NSR Robot Module is an ideal robot coupling for pallet handling extremely close to the machine table.
Robot module comes with a flange which is able to be customized according to your robot arm so that both them fit perfectly.
NSR Robot Module can be operated with 6 bar pressure.
Short taper positioning effectively guarantees joint process easy go at a repeat accuracy of < 0.01 mm.
Dual stroke system for highest pull-down forces leads to reliable self-retained locking even if air pressure drop. Pull down force 5KN generally.
Pull-down force is able to increase up to 8KN with turbo air pressure.
Integrated electronic magnetic switch by default. Inductive monitoring of module opened or closed and of pallet presence.
