Rotatable Pendulum Vise 0-100 Unoset ER-008856

Rotatable Pendulum Vise 0-100 Unoset ER-008856

Description: 3 Axis Hight Precision Control Jig is compatible with EROWA Wire EDM Tooling and it is equivalent to ER-008856 Rotatable pendulum vise 0-100 UnoSet. It maximum extend 40mm with 100mm part height. It is for adjustable workpiee positioning in three axes. Continuously able to rotate around 360°Set with three pairs of clamping jaws. The extra jaws 50-75mm and 57-100mm need order sepearately.


Availability:



Inquire

Product Description

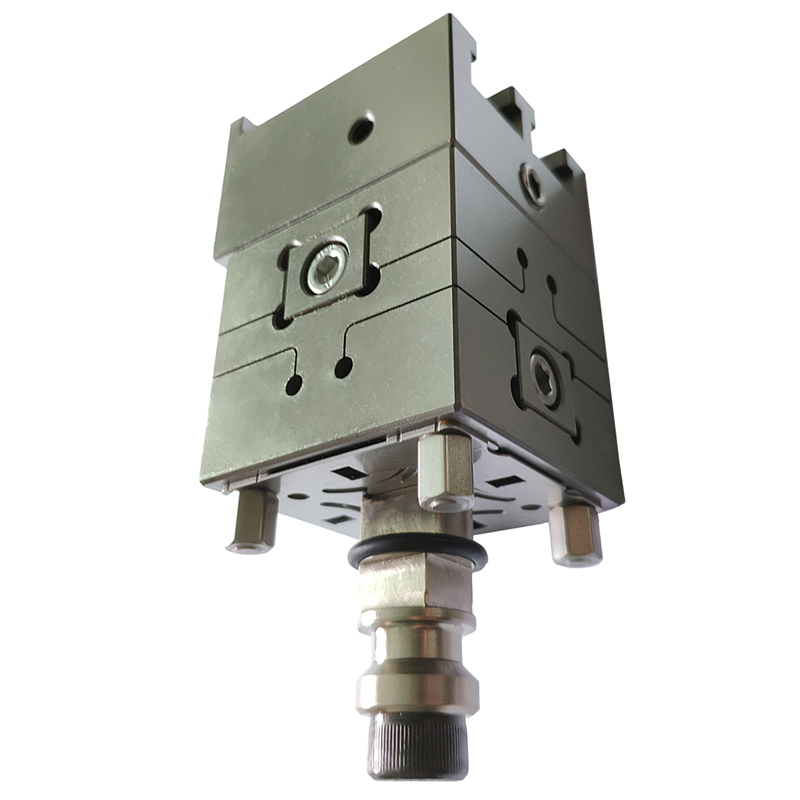

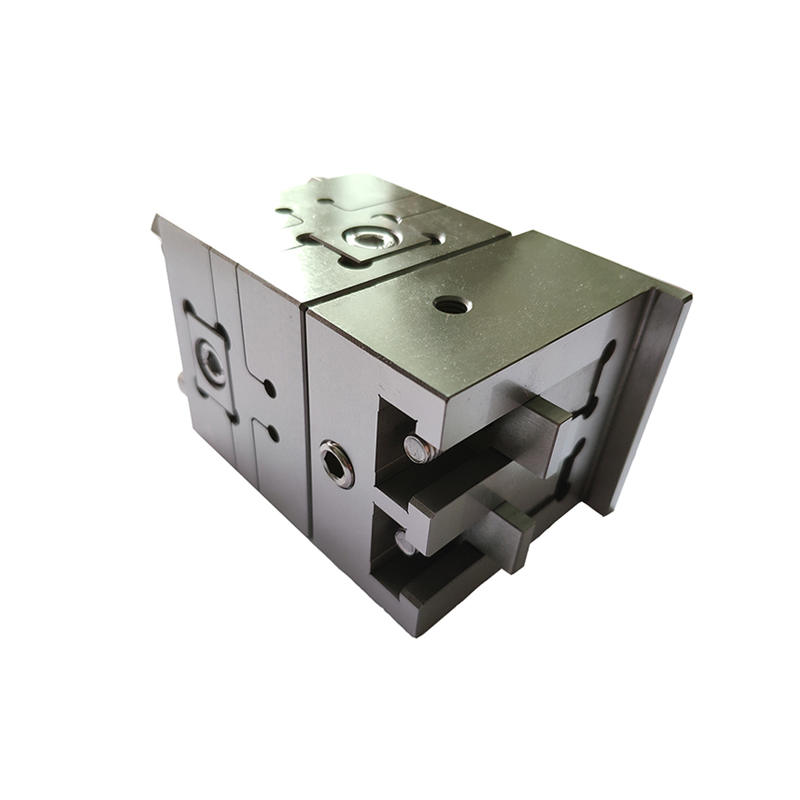

ER-008856 Rotatable pendulum vise 0-100 UnoSet-1

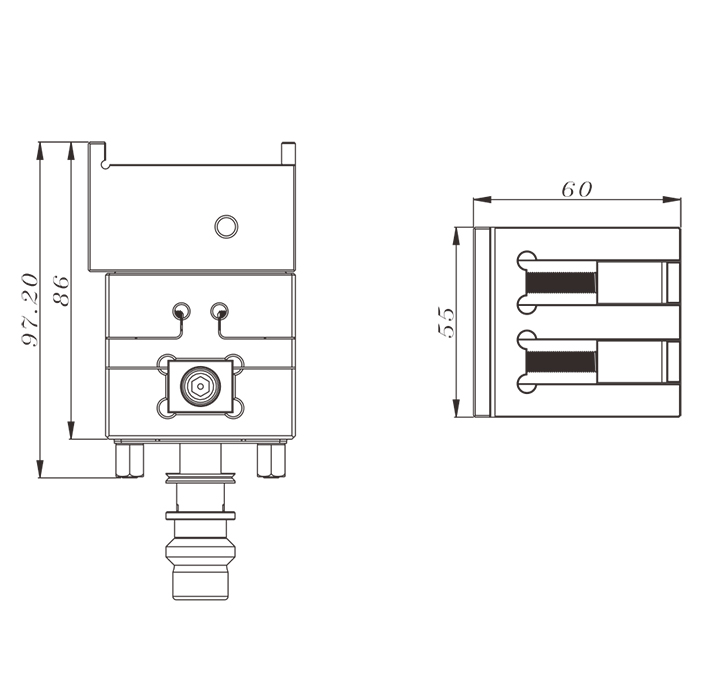

PO-T0002-3 AXIS HIGH PRECISION CONTROL JIG-Specificaion

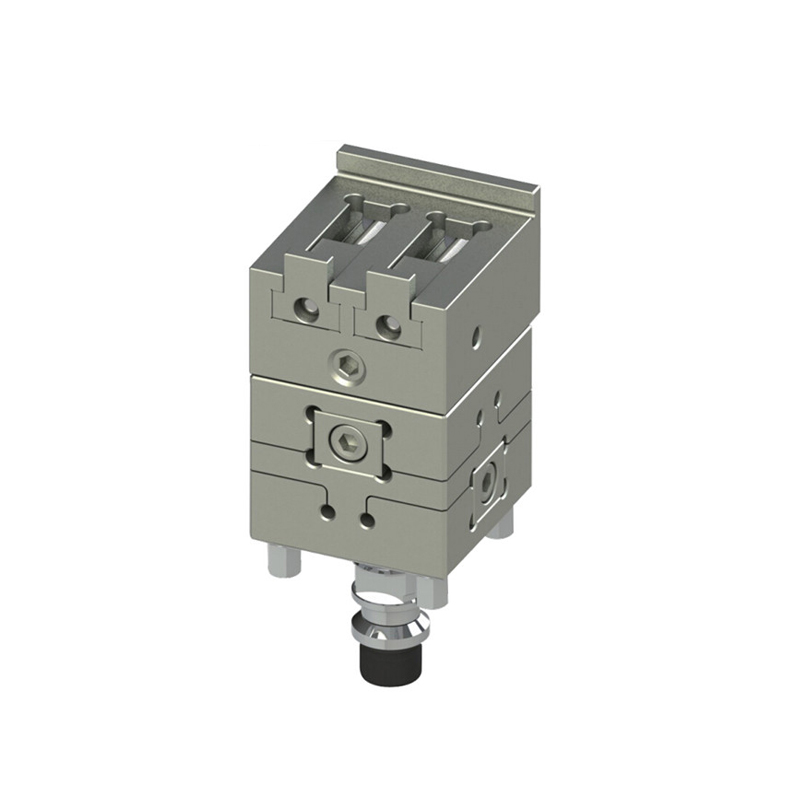

Product Name: 3 Axis Hight Precision Control Jig ER-008856

Item No.: PO-T0002

Description: 3 Axis Hight Precision Control Jig is compatible with EROWA Wire EDM Tooling and it is equivalent to ER-008856 Rotatable pendulum vise 0-100 UnoSet. It maximum extend 40mm with 100mm part height. It is for adjustable workpiee positioning in three axes. Continuously able to rotate around 360°Set with three pairs of clamping jaws.

Rotatable Pendulum Vise 0-100 Unoset ER-008856 Vise Equivalent EROWA models
