Robot Gripper for End Mill Arbor Tool Holder BT-40

9

Robot Gripper for End Mill Arbor Tool Holder BT-40

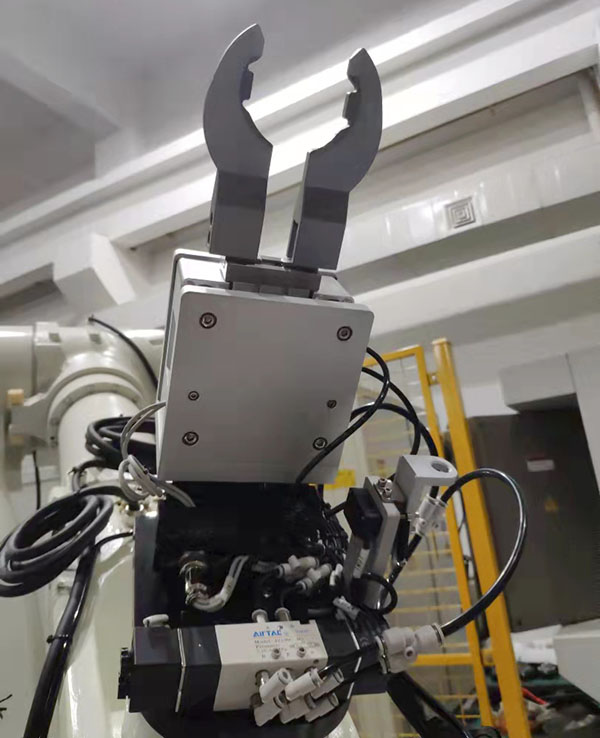

Robot gripper for End Mill Arbor Holder BT-40 applies to robot automation production line. It is able to couple with robot module on the end of the robot. The end part of the gripper is able to hold BT-40 end mill arbor holder when it is on clamping status. Distance of run between end parts of the gripper on Clamp/ Unclamp status is 22 mm. Middle part of the gripper is a buffer mechanism with springs in case of breaking during loading procedure.


Availability:



Inquire

Product Description

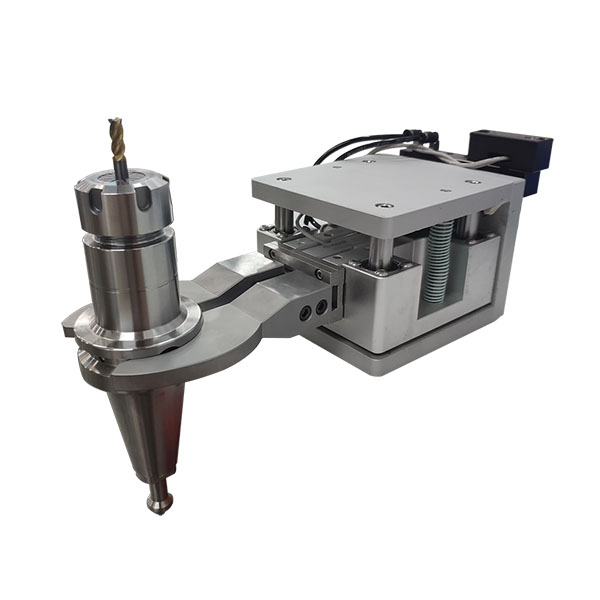

Robot Gripper for End Mill Arbor Tool Holder BT-40

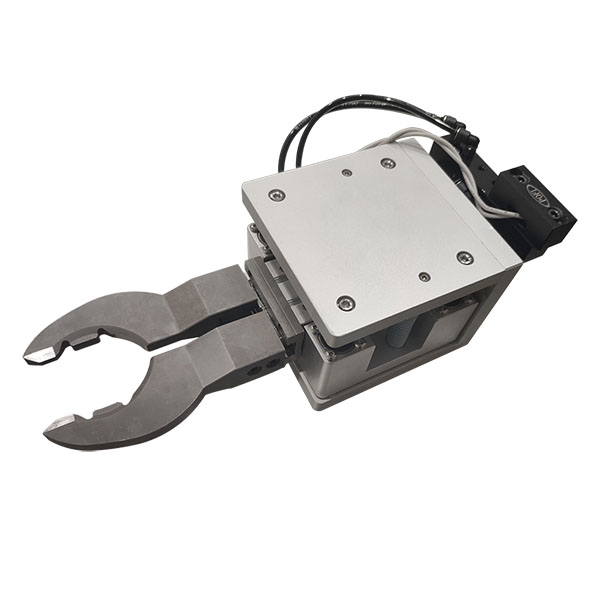

Gripper for End Mill Arbor Holder-3-600

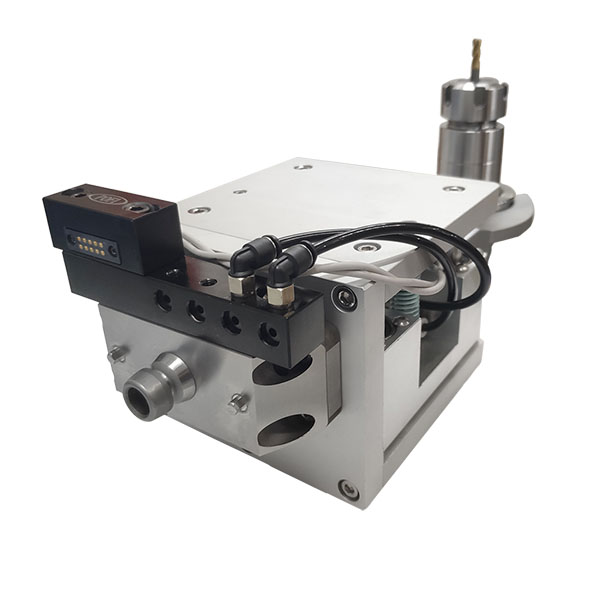

Gripper for End Mill Arbor Holder-4-600

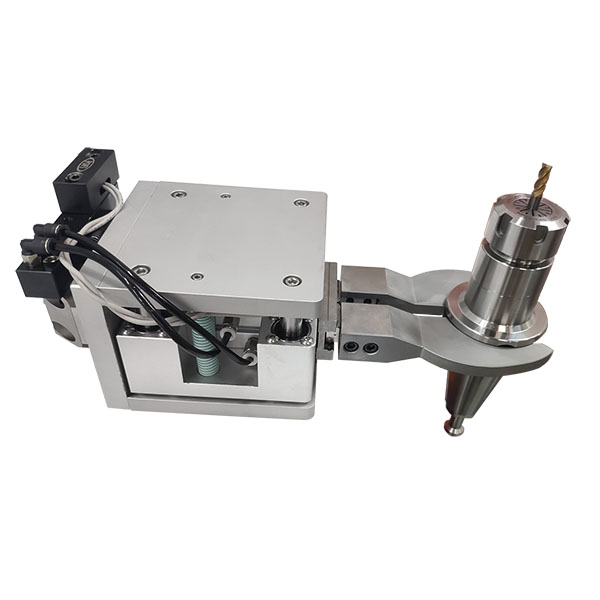

Gripper for End Mill Arbor Holder-5-600

Product Name: Robot Gripper for End Mill Arbor Tool Holder BT-40

Description: Robot gripper for End Mill Arbor Holder BT-40 applies to robot automation production line. It is able to couple with robot module on the end of the robot. The end part of the gripper is able to hold BT-40 end mill arbor holder when it is on clamping status. Distance of run between end parts of the gripper on Clamp/ Unclamp status is 22 mm. Middle part of the gripper is a buffer mechanism with springs in case of breaking during loading procedure.
