Fixture for Tiny Components 20x50mm

Fixture for Tiny Component 20x50mm is particularly for clamping workpiece size maximum to 20x50mm. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
  • PO-V0008
  • POFI

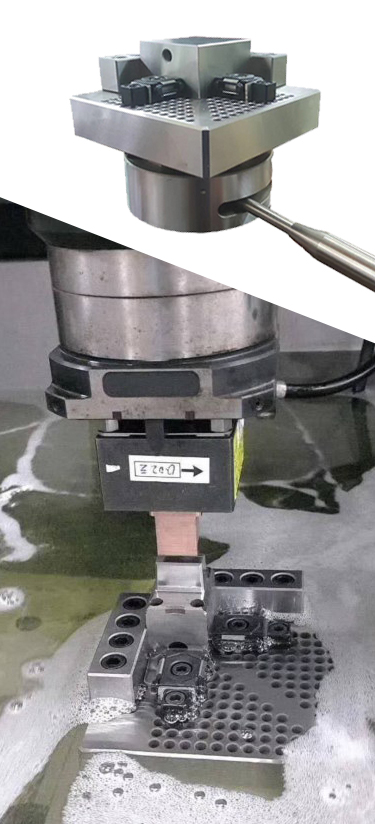

cse

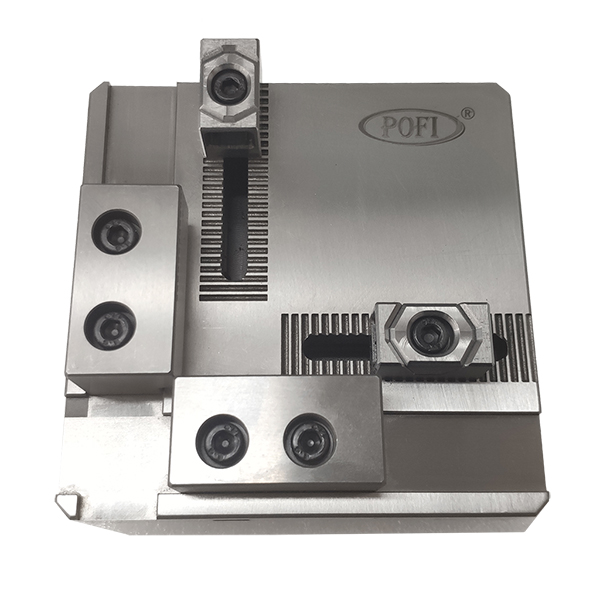

Fixture for 20x50mm Tiny Components-1-600

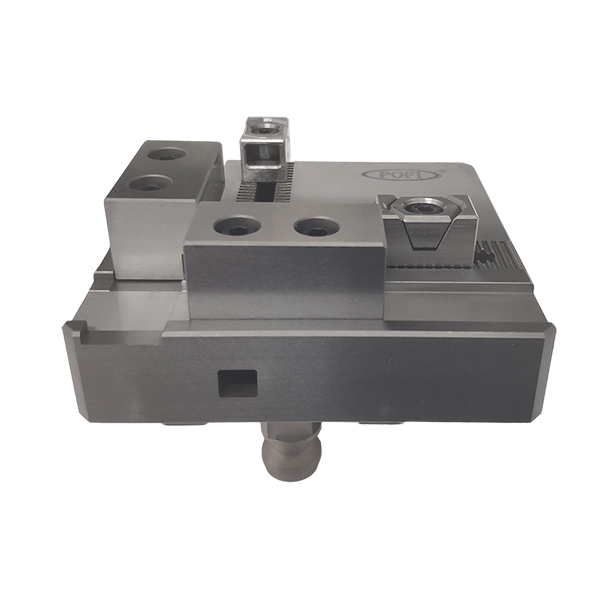

Fixture for 20x50mm Tiny Components-2-600

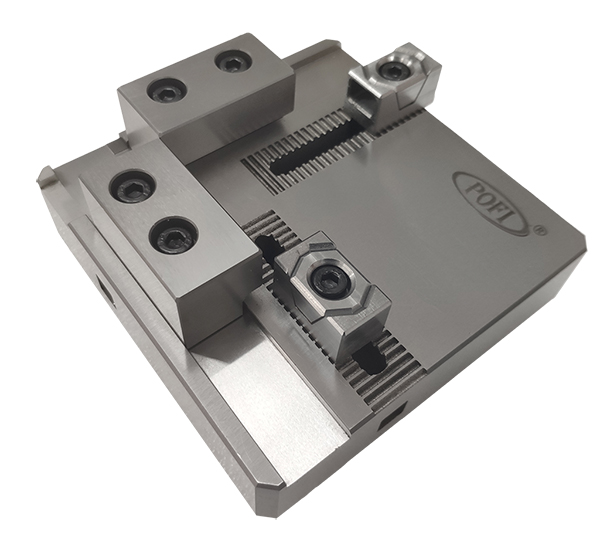

Fixture for 20x50mm Tiny Components-3-600

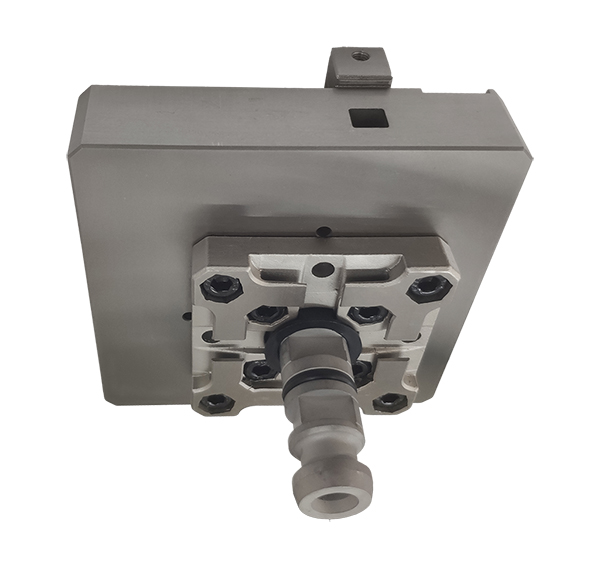

Fixture for 20x50mm Tiny Components-6-600

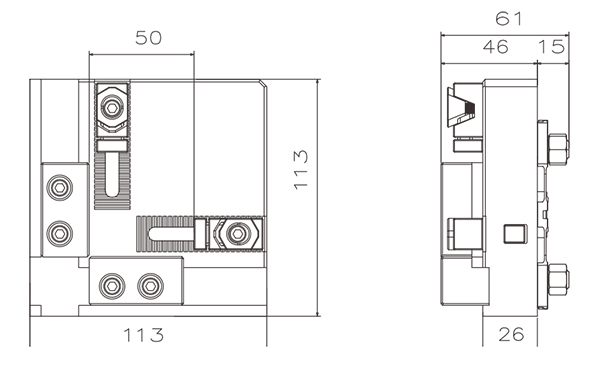

Fixture for 20x50mm Tiny Components-specification


Product Name: Fixture for Tiny Component 20x50mm

Item No.: PO-V0008

Description: Fixture for Tiny Component 20x50mm is particularly for clamping workpiece size maximum to 20x50mm. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
